JavaScript Signature Pad Code
Code Snippet:Signature Pad - demo
Author: Kunuk Nykjær
Published: January 20, 2024
Last Updated: January 22, 2024
Downloads: 1,081
License: MIT
Edit Code online: View on CodePen
Read More

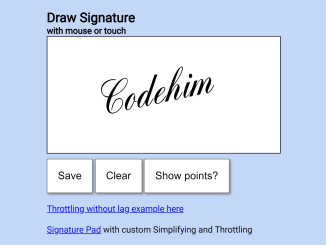

This JavaScript code implements a Signature Pad that allows users to draw signatures using a mouse or touch input. It includes features like saving the drawn signature as an image, clearing the canvas, and toggling the display of drawing points.

The main functionality of this code is to provide a signature drawing pad with options for customization such as pen color, background color, and line thickness. It also includes the ability to show or hide the drawing points for a better user experience.

This code is helpful for anyone who needs to implement a signature capture feature on a web application or website, such as for signing contracts or documents electronically.

How to Create Javascript Signature Pad Code With Example

1. In your HTML file, include the following code for the signature pad section:

<section class="signature-component">
  <h1>Draw Signature</h1>
  <h2>with mouse or touch</h2>

  <canvas id="signature-pad" width="400" height="200"></canvas>

  <div>
    <button id="save">Save</button>
    <button id="clear">Clear</button>
    <button id="showPointsToggle">Show points?</button>
  </div>

  <p>
    <br />
    <a href="https://codepen.io/kunukn/pen/bgjzpb/" target="_blank">Throttling without lag example here</a><br />
    <br />
    <a href="https://github.com/szimek/signature_pad" target="_blank">Signature Pad</a> with custom Simplifying and Throttling
  </p>
</section>

2. Next, include the following CSS code to style the signature pad. You can customize the styling according to your preferences.

*,
:before,
:after {
  box-sizing: border-box;
}

html {
  font: 18px "Helvetica Neue", sans-serif;
}

body {
  text-align: center;
}

.signature-component {
  text-align: left;
  display: inline-block;
  max-width: 100%;
}
.signature-component h1 {
  margin-bottom: 0;
}
.signature-component h2 {
  margin: 0;
  font-size: 100%;
}
.signature-component button {
  padding: 1em;
  background: transparent;
  box-shadow: 2px 2px 4px #777;
  margin-top: 0.5em;
  border: 1px solid #777;
  font-size: 1rem;
}
.signature-component button.toggle {
  background: rgba(255, 0, 0, 0.2);
}
.signature-component canvas {
  display: block;
  position: relative;
  border: 1px solid;
}
.signature-component img {
  position: absolute;
  left: 0;
  top: 0;
}

3. Load the Underscore JS by adding the following scripts before closing the body tag:

<script src='https://cdnjs.cloudflare.com/ajax/libs/underscore.js/1.8.3/underscore-min.js'></script>

4. Finally, include the following JavaScript code at the end of your HTML file or in an external JavaScript file. This code initializes the signature pad, sets up event listeners for saving, clearing, and toggling points, and handles drawing functionality.

/*!
 * Modified
 * Signature Pad v1.5.3
 * https://github.com/szimek/signature_pad
 *
 * Copyright 2016 Szymon Nowak
 * Released under the MIT license
 */
var SignaturePad = (function(document) {
    "use strict";

    var log = console.log.bind(console);

    var SignaturePad = function(canvas, options) {
        var self = this,
            opts = options || {};

        this.velocityFilterWeight = opts.velocityFilterWeight || 0.7;
        this.minWidth = opts.minWidth || 0.5;
        this.maxWidth = opts.maxWidth || 2.5;
        this.dotSize = opts.dotSize || function() {
                return (self.minWidth + self.maxWidth) / 2;
            };
        this.penColor = opts.penColor || "black";
        this.backgroundColor = opts.backgroundColor || "rgba(0,0,0,0)";
        this.throttle = opts.throttle || 0;
        this.throttleOptions = {
            leading: true,
            trailing: true
        };
        this.minPointDistance = opts.minPointDistance || 0;
        this.onEnd = opts.onEnd;
        this.onBegin = opts.onBegin;

        this._canvas = canvas;
        this._ctx = canvas.getContext("2d");
        this._ctx.lineCap = 'round';
        this.clear();

        // we need add these inline so they are available to unbind while still having
        //  access to 'self' we could use _.bind but it's not worth adding a dependency
        this._handleMouseDown = function(event) {
            if (event.which === 1) {
                self._mouseButtonDown = true;
                self._strokeBegin(event);
            }
        };

        var _handleMouseMove = function(event) {
           event.preventDefault();
            if (self._mouseButtonDown) {
                self._strokeUpdate(event);
                if (self.arePointsDisplayed) {
                    var point = self._createPoint(event);
                    self._drawMark(point.x, point.y, 5);
                }
            }
        };

        this._handleMouseMove = _.throttle(_handleMouseMove, self.throttle, self.throttleOptions);
        //this._handleMouseMove = _handleMouseMove;

        this._handleMouseUp = function(event) {
            if (event.which === 1 && self._mouseButtonDown) {
                self._mouseButtonDown = false;
                self._strokeEnd(event);
            }
        };

        this._handleTouchStart = function(event) {
            if (event.targetTouches.length == 1) {
                var touch = event.changedTouches[0];
                self._strokeBegin(touch);
            }
        };

        var _handleTouchMove = function(event) {
            // Prevent scrolling.
            event.preventDefault();

            var touch = event.targetTouches[0];
            self._strokeUpdate(touch);
            if (self.arePointsDisplayed) {
                var point = self._createPoint(touch);
                self._drawMark(point.x, point.y, 5);
            }
        };
        this._handleTouchMove = _.throttle(_handleTouchMove, self.throttle, self.throttleOptions);
        //this._handleTouchMove = _handleTouchMove;

        this._handleTouchEnd = function(event) {
            var wasCanvasTouched = event.target === self._canvas;
            if (wasCanvasTouched) {
                event.preventDefault();
                self._strokeEnd(event);
            }
        };

        this._handleMouseEvents();
        this._handleTouchEvents();
    };

    SignaturePad.prototype.clear = function() {
        var ctx = this._ctx,
            canvas = this._canvas;

        ctx.fillStyle = this.backgroundColor;
        ctx.clearRect(0, 0, canvas.width, canvas.height);
        ctx.fillRect(0, 0, canvas.width, canvas.height);
        this._reset();
    };

    SignaturePad.prototype.showPointsToggle = function() {
        this.arePointsDisplayed = !this.arePointsDisplayed;
    };

    SignaturePad.prototype.toDataURL = function(imageType, quality) {
        var canvas = this._canvas;
        return canvas.toDataURL.apply(canvas, arguments);
    };

    SignaturePad.prototype.fromDataURL = function(dataUrl) {
        var self = this,
            image = new Image(),
            ratio = window.devicePixelRatio || 1,
            width = this._canvas.width / ratio,
            height = this._canvas.height / ratio;

        this._reset();
        image.src = dataUrl;
        image.onload = function() {
            self._ctx.drawImage(image, 0, 0, width, height);
        };
        this._isEmpty = false;
    };

    SignaturePad.prototype._strokeUpdate = function(event) {
        var point = this._createPoint(event);
        if(this._isPointToBeUsed(point)){
            this._addPoint(point);
        }
    };

    var pointsSkippedFromBeingAdded = 0;
    SignaturePad.prototype._isPointToBeUsed = function(point) {
        // Simplifying, De-noise
        if(!this.minPointDistance)
            return true;

        var points = this.points;
        if(points && points.length){
            var lastPoint = points[points.length-1];
            if(point.distanceTo(lastPoint) < this.minPointDistance){
                // log(++pointsSkippedFromBeingAdded);
                return false;
            }
        }
        return true;
    };

    SignaturePad.prototype._strokeBegin = function(event) {
        this._reset();
        this._strokeUpdate(event);
        if (typeof this.onBegin === 'function') {
            this.onBegin(event);
        }
    };

    SignaturePad.prototype._strokeDraw = function(point) {
        var ctx = this._ctx,
            dotSize = typeof(this.dotSize) === 'function' ? this.dotSize() : this.dotSize;

        ctx.beginPath();
        this._drawPoint(point.x, point.y, dotSize);
        ctx.closePath();
        ctx.fill();
    };

    SignaturePad.prototype._strokeEnd = function(event) {
        var canDrawCurve = this.points.length > 2,
            point = this.points[0];

        if (!canDrawCurve && point) {
            this._strokeDraw(point);
        }
        if (typeof this.onEnd === 'function') {
            this.onEnd(event);
        }
    };

    SignaturePad.prototype._handleMouseEvents = function() {
        this._mouseButtonDown = false;

        this._canvas.addEventListener("mousedown", this._handleMouseDown);
        this._canvas.addEventListener("mousemove", this._handleMouseMove);
        document.addEventListener("mouseup", this._handleMouseUp);
    };

    SignaturePad.prototype._handleTouchEvents = function() {
        // Pass touch events to canvas element on mobile IE11 and Edge.
        this._canvas.style.msTouchAction = 'none';
        this._canvas.style.touchAction = 'none';

        this._canvas.addEventListener("touchstart", this._handleTouchStart);
        this._canvas.addEventListener("touchmove", this._handleTouchMove);
        this._canvas.addEventListener("touchend", this._handleTouchEnd);
    };

    SignaturePad.prototype.on = function() {
        this._handleMouseEvents();
        this._handleTouchEvents();
    };

    SignaturePad.prototype.off = function() {
        this._canvas.removeEventListener("mousedown", this._handleMouseDown);
        this._canvas.removeEventListener("mousemove", this._handleMouseMove);
        document.removeEventListener("mouseup", this._handleMouseUp);

        this._canvas.removeEventListener("touchstart", this._handleTouchStart);
        this._canvas.removeEventListener("touchmove", this._handleTouchMove);
        this._canvas.removeEventListener("touchend", this._handleTouchEnd);
    };

    SignaturePad.prototype.isEmpty = function() {
        return this._isEmpty;
    };

    SignaturePad.prototype._reset = function() {
        this.points = [];
        this._lastVelocity = 0;
        this._lastWidth = (this.minWidth + this.maxWidth) / 2;
        this._isEmpty = true;
        this._ctx.fillStyle = this.penColor;
    };

    SignaturePad.prototype._createPoint = function(event) {
        var rect = this._canvas.getBoundingClientRect();
        return new Point(
            event.clientX - rect.left,
            event.clientY - rect.top
        );
    };

    SignaturePad.prototype._addPoint = function(point) {
        var points = this.points,
            c2, c3,
            curve, tmp;

        points.push(point);

        if (points.length > 2) {
            // To reduce the initial lag make it work with 3 points
            // by copying the first point to the beginning.
            if (points.length === 3) points.unshift(points[0]);

            tmp = this._calculateCurveControlPoints(points[0], points[1], points[2]);
            c2 = tmp.c2;
            tmp = this._calculateCurveControlPoints(points[1], points[2], points[3]);
            c3 = tmp.c1;
            curve = new Bezier(points[1], c2, c3, points[2]);
            this._addCurve(curve);

            // Remove the first element from the list,
            // so that we always have no more than 4 points in points array.
            points.shift();
        }
    };

    SignaturePad.prototype._calculateCurveControlPoints = function(s1, s2, s3) {
        var dx1 = s1.x - s2.x,
            dy1 = s1.y - s2.y,
            dx2 = s2.x - s3.x,
            dy2 = s2.y - s3.y,

            m1 = {
                x: (s1.x + s2.x) / 2.0,
                y: (s1.y + s2.y) / 2.0
            },
            m2 = {
                x: (s2.x + s3.x) / 2.0,
                y: (s2.y + s3.y) / 2.0
            },

            l1 = Math.sqrt(1.0 * dx1 * dx1 + dy1 * dy1),
            l2 = Math.sqrt(1.0 * dx2 * dx2 + dy2 * dy2),

            dxm = (m1.x - m2.x),
            dym = (m1.y - m2.y),

            k = l2 / (l1 + l2),
            cm = {
                x: m2.x + dxm * k,
                y: m2.y + dym * k
            },

            tx = s2.x - cm.x,
            ty = s2.y - cm.y;

        return {
            c1: new Point(m1.x + tx, m1.y + ty),
            c2: new Point(m2.x + tx, m2.y + ty)
        };
    };

    SignaturePad.prototype._addCurve = function(curve) {
        var startPoint = curve.startPoint,
            endPoint = curve.endPoint,
            velocity, newWidth;

        velocity = endPoint.velocityFrom(startPoint);
        velocity = this.velocityFilterWeight * velocity +
            (1 - this.velocityFilterWeight) * this._lastVelocity;

        newWidth = this._strokeWidth(velocity);
        this._drawCurve(curve, this._lastWidth, newWidth);

        this._lastVelocity = velocity;
        this._lastWidth = newWidth;
    };

    SignaturePad.prototype._drawPoint = function(x, y, size) {
        var ctx = this._ctx;

        ctx.moveTo(x, y);
        ctx.arc(x, y, size, 0, 2 * Math.PI, false);
        this._isEmpty = false;
    };

    SignaturePad.prototype._drawMark = function(x, y, size) {
        var ctx = this._ctx;

        ctx.save();
        ctx.moveTo(x, y);
        ctx.arc(x, y, size, 0, 2 * Math.PI, false);
        ctx.fillStyle = 'rgba(255, 0, 0, 0.2)';
        ctx.fill();
        ctx.restore();
    };

    SignaturePad.prototype._drawCurve = function(curve, startWidth, endWidth) {
        var ctx = this._ctx,
            widthDelta = endWidth - startWidth,
            drawSteps, width, i, t, tt, ttt, u, uu, uuu, x, y;

        drawSteps = Math.floor(curve.length());
        ctx.beginPath();
        for (i = 0; i < drawSteps; i++) {
            // Calculate the Bezier (x, y) coordinate for this step.
            t = i / drawSteps;
            tt = t * t;
            ttt = tt * t;
            u = 1 - t;
            uu = u * u;
            uuu = uu * u;

            x = uuu * curve.startPoint.x;
            x += 3 * uu * t * curve.control1.x;
            x += 3 * u * tt * curve.control2.x;
            x += ttt * curve.endPoint.x;

            y = uuu * curve.startPoint.y;
            y += 3 * uu * t * curve.control1.y;
            y += 3 * u * tt * curve.control2.y;
            y += ttt * curve.endPoint.y;

            width = startWidth + ttt * widthDelta;
            this._drawPoint(x, y, width);
        }
        ctx.closePath();
        ctx.fill();
    };

    SignaturePad.prototype._strokeWidth = function(velocity) {
        return Math.max(this.maxWidth / (velocity + 1), this.minWidth);
    };

    var Point = function(x, y, time) {
        this.x = x;
        this.y = y;
        this.time = time || new Date().getTime();
    };

    Point.prototype.velocityFrom = function(start) {
        return (this.time !== start.time) ? this.distanceTo(start) / (this.time - start.time) : 1;
    };

    Point.prototype.distanceTo = function(start) {
        return Math.sqrt(Math.pow(this.x - start.x, 2) + Math.pow(this.y - start.y, 2));
    };

    var Bezier = function(startPoint, control1, control2, endPoint) {
        this.startPoint = startPoint;
        this.control1 = control1;
        this.control2 = control2;
        this.endPoint = endPoint;
    };

    // Returns approximated length.
    Bezier.prototype.length = function() {
        var steps = 10,
            length = 0,
            i, t, cx, cy, px, py, xdiff, ydiff;

        for (i = 0; i <= steps; i++) {
            t = i / steps;
            cx = this._point(t, this.startPoint.x, this.control1.x, this.control2.x, this.endPoint.x);
            cy = this._point(t, this.startPoint.y, this.control1.y, this.control2.y, this.endPoint.y);
            if (i > 0) {
                xdiff = cx - px;
                ydiff = cy - py;
                length += Math.sqrt(xdiff * xdiff + ydiff * ydiff);
            }
            px = cx;
            py = cy;
        }
        return length;
    };

    Bezier.prototype._point = function(t, start, c1, c2, end) {
        return start * (1.0 - t) * (1.0 - t) * (1.0 - t) +
            3.0 * c1 * (1.0 - t) * (1.0 - t) * t +
            3.0 * c2 * (1.0 - t) * t * t +
            end * t * t * t;
    };

    return SignaturePad;
})(document);

var signaturePad = new SignaturePad(document.getElementById('signature-pad'), {
    backgroundColor: 'rgba(255, 255, 255, 0)',
    penColor: 'rgb(0, 0, 0)',
    velocityFilterWeight: .7,
    minWidth: 0.5,
    maxWidth: 2.5,
    throttle: 16, // max x milli seconds on event update, OBS! this introduces lag for event update
    minPointDistance: 3,
});
var saveButton = document.getElementById('save'),
    clearButton = document.getElementById('clear'),
    showPointsToggle = document.getElementById('showPointsToggle');

saveButton.addEventListener('click', function(event) {
    var data = signaturePad.toDataURL('image/png');
    window.open(data);
});
clearButton.addEventListener('click', function(event) {
    signaturePad.clear();
});
showPointsToggle.addEventListener('click', function(event) {
    signaturePad.showPointsToggle();
    showPointsToggle.classList.toggle('toggle');
});

Customize the code further to fit your application’s needs. You can integrate the signature pad into your forms or document signing processes, ensuring a smooth and user-friendly experience for capturing signatures.

That’s all! hopefully, you have successfully created a Signature Pad using this JavaScript code. If you have any questions or suggestions, feel free to comment below.

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.

About CodeHim

Free Web Design Code & Scripts - CodeHim is one of the BEST developer websites that provide web designers and developers with a simple way to preview and download a variety of free code & scripts. All codes published on CodeHim are open source, distributed under OSD-compliant license which grants all the rights to use, study, change and share the software in modified and unmodified form. Before publishing, we test and review each code snippet to avoid errors, but we cannot warrant the full correctness of all content. All trademarks, trade names, logos, and icons are the property of their respective owners... find out more...

Please Rel0ad/PressF5 this page if you can't click the download/preview link

X
