Star Rating Animation using SVG and Vanilla JS
Code Snippet:Animated Star Rating
Author: Jon Kantner
Published: January 16, 2024
Last Updated: January 22, 2024
Downloads: 2,327
License: MIT
Edit Code online: View on CodePen
Read More
 Demo
Download (6 KB)

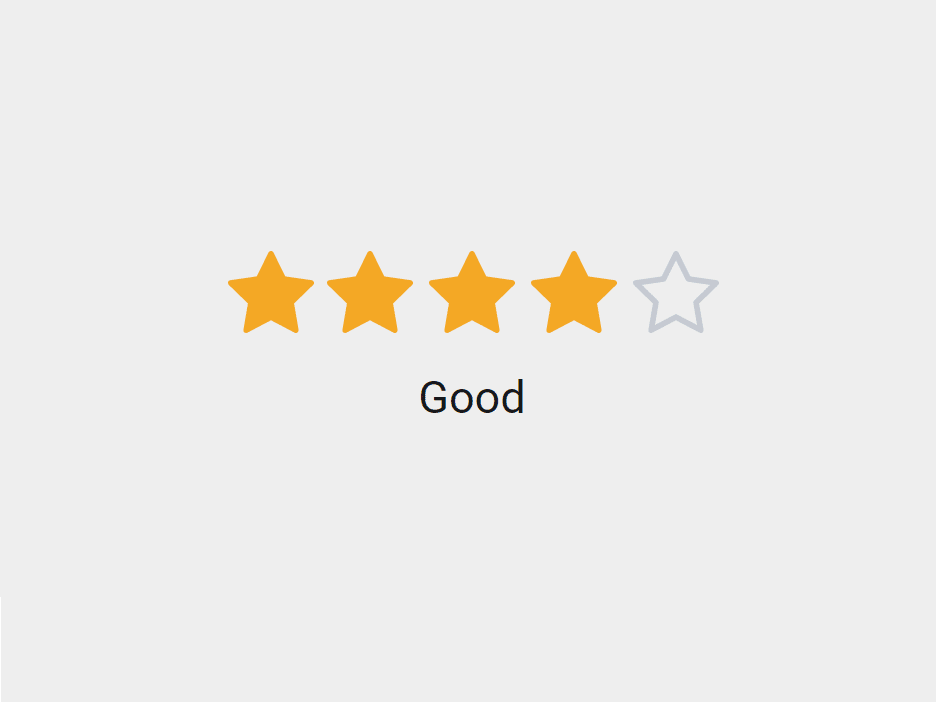

This Vanilla JS code snippet helps you to create SVG star rating animation with radio inputs. The five star rating comes with 5 different levels of feedbacks with stars and text bottom of them.

One star rating indicates terrible experience while five star rating indicates excellent experience. User can select the star and this code snippet animates the star ✨ and display rating feedback accordingly.

How to Create Star Rating Animation using SVG and Vanilla JS

1. First of all, load the Google Fonts CSS into the head tag of your HTML document.

<link rel='stylesheet' href='https://fonts.googleapis.com/css2?family=DM+Sans:wght@400;500&amp;display=swap'>

2. After that, create the HTML form element with a class name “rating”, place radio inputs with unique ID attributes, and define SVG elements as define in the below HTML code:

<form class="rating">
	<div class="rating__stars">
		<input id="rating-1" class="rating__input rating__input-1" type="radio" name="rating" value="1">
		<input id="rating-2" class="rating__input rating__input-2" type="radio" name="rating" value="2">
		<input id="rating-3" class="rating__input rating__input-3" type="radio" name="rating" value="3">
		<input id="rating-4" class="rating__input rating__input-4" type="radio" name="rating" value="4">
		<input id="rating-5" class="rating__input rating__input-5" type="radio" name="rating" value="5">
		<label class="rating__label" for="rating-1">
			<svg class="rating__star" width="32" height="32" viewBox="0 0 32 32" aria-hidden="true">
				<g transform="translate(16,16)">
					<circle class="rating__star-ring" fill="none" stroke="#000" stroke-width="16" r="8" transform="scale(0)" />
				</g>
				<g stroke="#000" stroke-width="2" stroke-linecap="round" stroke-linejoin="round">
					<g transform="translate(16,16) rotate(180)">
						<polygon class="rating__star-stroke" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="none" />
						<polygon class="rating__star-fill" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="#000" />
					</g>
					<g transform="translate(16,16)" stroke-dasharray="12 12" stroke-dashoffset="12">
						<polyline class="rating__star-line" transform="rotate(0)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(72)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(144)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(216)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(288)" points="0 4,0 16" />
					</g>
				</g>
			</svg>
			<span class="rating__sr">1 star—Terrible</span>
		</label>
		<label class="rating__label" for="rating-2">
			<svg class="rating__star" width="32" height="32" viewBox="0 0 32 32" aria-hidden="true">
				<g transform="translate(16,16)">
					<circle class="rating__star-ring" fill="none" stroke="#000" stroke-width="16" r="8" transform="scale(0)" />
				</g>
				<g stroke="#000" stroke-width="2" stroke-linecap="round" stroke-linejoin="round">
					<g transform="translate(16,16) rotate(180)">
						<polygon class="rating__star-stroke" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="none" />
						<polygon class="rating__star-fill" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="#000" />
					</g>
					<g transform="translate(16,16)" stroke-dasharray="12 12" stroke-dashoffset="12">
						<polyline class="rating__star-line" transform="rotate(0)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(72)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(144)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(216)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(288)" points="0 4,0 16" />
					</g>
				</g>
			</svg>
			<span class="rating__sr">2 stars—Bad</span>
		</label>
		<label class="rating__label" for="rating-3">
			<svg class="rating__star" width="32" height="32" viewBox="0 0 32 32" aria-hidden="true">
				<g transform="translate(16,16)">
					<circle class="rating__star-ring" fill="none" stroke="#000" stroke-width="16" r="8" transform="scale(0)" />
				</g>
				<g stroke="#000" stroke-width="2" stroke-linecap="round" stroke-linejoin="round">
					<g transform="translate(16,16) rotate(180)">
						<polygon class="rating__star-stroke" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="none" />
						<polygon class="rating__star-fill" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="#000" />
					</g>
					<g transform="translate(16,16)" stroke-dasharray="12 12" stroke-dashoffset="12">
						<polyline class="rating__star-line" transform="rotate(0)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(72)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(144)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(216)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(288)" points="0 4,0 16" />
					</g>
				</g>
			</svg>
			<span class="rating__sr">3 stars—OK</span>
		</label>
		<label class="rating__label" for="rating-4">
			<svg class="rating__star" width="32" height="32" viewBox="0 0 32 32" aria-hidden="true">
				<g transform="translate(16,16)">
					<circle class="rating__star-ring" fill="none" stroke="#000" stroke-width="16" r="8" transform="scale(0)" />
				</g>
				<g stroke="#000" stroke-width="2" stroke-linecap="round" stroke-linejoin="round">
					<g transform="translate(16,16) rotate(180)">
						<polygon class="rating__star-stroke" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="none" />
						<polygon class="rating__star-fill" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="#000" />
					</g>
					<g transform="translate(16,16)" stroke-dasharray="12 12" stroke-dashoffset="12">
						<polyline class="rating__star-line" transform="rotate(0)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(72)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(144)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(216)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(288)" points="0 4,0 16" />
					</g>
				</g>
			</svg>
			<span class="rating__sr">4 stars—Good</span>
		</label>
		<label class="rating__label" for="rating-5">
			<svg class="rating__star" width="32" height="32" viewBox="0 0 32 32" aria-hidden="true">
				<g transform="translate(16,16)">
					<circle class="rating__star-ring" fill="none" stroke="#000" stroke-width="16" r="8" transform="scale(0)" />
				</g>
				<g stroke="#000" stroke-width="2" stroke-linecap="round" stroke-linejoin="round">
					<g transform="translate(16,16) rotate(180)">
						<polygon class="rating__star-stroke" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="none" />
						<polygon class="rating__star-fill" points="0,15 4.41,6.07 14.27,4.64 7.13,-2.32 8.82,-12.14 0,-7.5 -8.82,-12.14 -7.13,-2.32 -14.27,4.64 -4.41,6.07" fill="#000" />
					</g>
					<g transform="translate(16,16)" stroke-dasharray="12 12" stroke-dashoffset="12">
						<polyline class="rating__star-line" transform="rotate(0)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(72)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(144)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(216)" points="0 4,0 16" />
						<polyline class="rating__star-line" transform="rotate(288)" points="0 4,0 16" />
					</g>
				</g>
			</svg>
			<span class="rating__sr">5 stars—Excellent</span>
		</label>
		<p class="rating__display" data-rating="1" hidden>Terrible</p>
		<p class="rating__display" data-rating="2" hidden>Bad</p>
		<p class="rating__display" data-rating="3" hidden>OK</p>
		<p class="rating__display" data-rating="4" hidden>Good</p>
		<p class="rating__display" data-rating="5" hidden>Excellent</p>
	</div>
</form>

3. Style the star rating using the following CSS. You can set the custom values for star fill color and transition values according to your needs.

* {
  border: 0;
  box-sizing: border-box;
  margin: 0;
  padding: 0;
}

:root {
  --bg: #e3e4e8;
  --fg: #17181c;
  --primary: #255ff4;
  --yellow: #f4a825;
  --yellow-t: rgba(244, 168, 37, 0);
  --bezier: cubic-bezier(0.42,0,0.58,1);
  --trans-dur: 0.3s;
  font-size: calc(24px + (30 - 24) * (100vw - 320px) / (1280 - 320));
}

body {
  background-color: var(--bg);
  color: var(--fg);
  font: 1em/1.5 "DM Sans", sans-serif;
  display: flex;
  height: 100vh;
  transition: background-color var(--trans-dur), color var(--trans-dur);
}

.rating {
  margin: auto;
}
.rating__display {
  font-size: 1em;
  font-weight: 500;
  min-height: 1.25em;
  position: absolute;
  top: 100%;
  width: 100%;
  text-align: center;
}
.rating__stars {
  display: flex;
  padding-bottom: 0.375em;
  position: relative;
}
.rating__star {
  display: block;
  overflow: visible;
  pointer-events: none;
  width: 2em;
  height: 2em;
}
.rating__star-ring, .rating__star-fill, .rating__star-line, .rating__star-stroke {
  animation-duration: 1s;
  animation-timing-function: ease-in-out;
  animation-fill-mode: forwards;
}
.rating__star-ring, .rating__star-fill, .rating__star-line {
  stroke: var(--yellow);
}
.rating__star-fill {
  fill: var(--yellow);
  transform: scale(0);
  transition: fill var(--trans-dur) var(--bezier), transform var(--trans-dur) var(--bezier);
}
.rating__star-stroke {
  stroke: #c7cad1;
  transition: stroke var(--trans-dur);
}
.rating__label {
  cursor: pointer;
  padding: 0.125em;
}
.rating__label--delay1 .rating__star-ring, .rating__label--delay1 .rating__star-fill, .rating__label--delay1 .rating__star-line, .rating__label--delay1 .rating__star-stroke {
  animation-delay: 0.05s;
}
.rating__label--delay2 .rating__star-ring, .rating__label--delay2 .rating__star-fill, .rating__label--delay2 .rating__star-line, .rating__label--delay2 .rating__star-stroke {
  animation-delay: 0.1s;
}
.rating__label--delay3 .rating__star-ring, .rating__label--delay3 .rating__star-fill, .rating__label--delay3 .rating__star-line, .rating__label--delay3 .rating__star-stroke {
  animation-delay: 0.15s;
}
.rating__label--delay4 .rating__star-ring, .rating__label--delay4 .rating__star-fill, .rating__label--delay4 .rating__star-line, .rating__label--delay4 .rating__star-stroke {
  animation-delay: 0.2s;
}
.rating__input {
  -webkit-appearance: none;
  appearance: none;
}
.rating__input:hover ~ [data-rating]:not([hidden]) {
  display: none;
}
.rating__input-1:hover ~ [data-rating="1"][hidden], .rating__input-2:hover ~ [data-rating="2"][hidden], .rating__input-3:hover ~ [data-rating="3"][hidden], .rating__input-4:hover ~ [data-rating="4"][hidden], .rating__input-5:hover ~ [data-rating="5"][hidden], .rating__input:checked:hover ~ [data-rating]:not([hidden]) {
  display: block;
}
.rating__input-1:hover ~ .rating__label:first-of-type .rating__star-stroke, .rating__input-2:hover ~ .rating__label:nth-of-type(-n + 2) .rating__star-stroke, .rating__input-3:hover ~ .rating__label:nth-of-type(-n + 3) .rating__star-stroke, .rating__input-4:hover ~ .rating__label:nth-of-type(-n + 4) .rating__star-stroke, .rating__input-5:hover ~ .rating__label:nth-of-type(-n + 5) .rating__star-stroke {
  stroke: var(--yellow);
  transform: scale(1);
}
.rating__input-1:checked ~ .rating__label:first-of-type .rating__star-ring, .rating__input-2:checked ~ .rating__label:nth-of-type(-n + 2) .rating__star-ring, .rating__input-3:checked ~ .rating__label:nth-of-type(-n + 3) .rating__star-ring, .rating__input-4:checked ~ .rating__label:nth-of-type(-n + 4) .rating__star-ring, .rating__input-5:checked ~ .rating__label:nth-of-type(-n + 5) .rating__star-ring {
  animation-name: starRing;
}
.rating__input-1:checked ~ .rating__label:first-of-type .rating__star-stroke, .rating__input-2:checked ~ .rating__label:nth-of-type(-n + 2) .rating__star-stroke, .rating__input-3:checked ~ .rating__label:nth-of-type(-n + 3) .rating__star-stroke, .rating__input-4:checked ~ .rating__label:nth-of-type(-n + 4) .rating__star-stroke, .rating__input-5:checked ~ .rating__label:nth-of-type(-n + 5) .rating__star-stroke {
  animation-name: starStroke;
}
.rating__input-1:checked ~ .rating__label:first-of-type .rating__star-line, .rating__input-2:checked ~ .rating__label:nth-of-type(-n + 2) .rating__star-line, .rating__input-3:checked ~ .rating__label:nth-of-type(-n + 3) .rating__star-line, .rating__input-4:checked ~ .rating__label:nth-of-type(-n + 4) .rating__star-line, .rating__input-5:checked ~ .rating__label:nth-of-type(-n + 5) .rating__star-line {
  animation-name: starLine;
}
.rating__input-1:checked ~ .rating__label:first-of-type .rating__star-fill, .rating__input-2:checked ~ .rating__label:nth-of-type(-n + 2) .rating__star-fill, .rating__input-3:checked ~ .rating__label:nth-of-type(-n + 3) .rating__star-fill, .rating__input-4:checked ~ .rating__label:nth-of-type(-n + 4) .rating__star-fill, .rating__input-5:checked ~ .rating__label:nth-of-type(-n + 5) .rating__star-fill {
  animation-name: starFill;
}
.rating__input-1:not(:checked):hover ~ .rating__label:first-of-type .rating__star-fill, .rating__input-2:not(:checked):hover ~ .rating__label:nth-of-type(2) .rating__star-fill, .rating__input-3:not(:checked):hover ~ .rating__label:nth-of-type(3) .rating__star-fill, .rating__input-4:not(:checked):hover ~ .rating__label:nth-of-type(4) .rating__star-fill, .rating__input-5:not(:checked):hover ~ .rating__label:nth-of-type(5) .rating__star-fill {
  fill: var(--yellow-t);
}
.rating__sr {
  clip: rect(1px, 1px, 1px, 1px);
  overflow: hidden;
  position: absolute;
  width: 1px;
  height: 1px;
}

@media (prefers-color-scheme: dark) {
  :root {
    --bg: #17181c;
    --fg: #e3e4e8;
  }

  .rating {
    margin: auto;
  }
  .rating__star-stroke {
    stroke: #454954;
  }
}
@keyframes starRing {
  from, 20% {
    animation-timing-function: ease-in;
    opacity: 1;
    r: 8px;
    stroke-width: 16px;
    transform: scale(0);
  }
  35% {
    animation-timing-function: ease-out;
    opacity: 0.5;
    r: 8px;
    stroke-width: 16px;
    transform: scale(1);
  }
  50%, to {
    opacity: 0;
    r: 16px;
    stroke-width: 0;
    transform: scale(1);
  }
}
@keyframes starFill {
  from, 40% {
    animation-timing-function: ease-out;
    transform: scale(0);
  }
  60% {
    animation-timing-function: ease-in-out;
    transform: scale(1.2);
  }
  80% {
    transform: scale(0.9);
  }
  to {
    transform: scale(1);
  }
}
@keyframes starStroke {
  from {
    transform: scale(1);
  }
  20%, to {
    transform: scale(0);
  }
}
@keyframes starLine {
  from, 40% {
    animation-timing-function: ease-out;
    stroke-dasharray: 1 23;
    stroke-dashoffset: 1;
  }
  60%, to {
    stroke-dasharray: 12 12;
    stroke-dashoffset: -12;
  }
}

4. Finally, add the following JavaScript function before closing of the body tag to activate the star rating animation.

window.addEventListener("DOMContentLoaded",() => {
	const starRating = new StarRating("form");
});

class StarRating {
	constructor(qs) {
		this.ratings = [
			{id: 1, name: "Terrible"},
			{id: 2, name: "Bad"},
			{id: 3, name: "OK"},
			{id: 4, name: "Good"},
			{id: 5, name: "Excellent"}
		];
		this.rating = null;
		this.el = document.querySelector(qs);

		this.init();
	}
	init() {
		this.el?.addEventListener("change",this.updateRating.bind(this));

		// stop Firefox from preserving form data between refreshes
		try {
			this.el?.reset();
		} catch (err) {
			console.error("Element isn’t a form.");
		}
	}
	updateRating(e) {
		// clear animation delays
		Array.from(this.el.querySelectorAll(`[for*="rating"]`)).forEach(el => {
			el.className = "rating__label";
		});

		const ratingObject = this.ratings.find(r => r.id === +e.target.value);
		const prevRatingID = this.rating?.id || 0;

		let delay = 0;
		this.rating = ratingObject;
		this.ratings.forEach(rating => {
			const { id } = rating;

			// add the delays
			const ratingLabel = this.el.querySelector(`[for="rating-${id}"]`);

			if (id > prevRatingID + 1 && id <= this.rating.id) {
				++delay;
				ratingLabel.classList.add(`rating__label--delay${delay}`);
			}

			// hide ratings to not read, show the one to read
			const ratingTextEl = this.el.querySelector(`[data-rating="${id}"]`);

			if (this.rating.id !== id)
				ratingTextEl.setAttribute("hidden",true);
			else
				ratingTextEl.removeAttribute("hidden");
		});
	}
}

That’s all! hopefully, you have successfully created star rating animation using SVG and Vanilla JavaScript. If you have any questions or suggestions, feel free to comment below.

Similar Code Snippets:

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.

About CodeHim

Free Web Design Code & Scripts - CodeHim is one of the BEST developer websites that provide web designers and developers with a simple way to preview and download a variety of free code & scripts. All codes published on CodeHim are open source, distributed under OSD-compliant license which grants all the rights to use, study, change and share the software in modified and unmodified form. Before publishing, we test and review each code snippet to avoid errors, but we cannot warrant the full correctness of all content. All trademarks, trade names, logos, and icons are the property of their respective owners... find out more...

Please Rel0ad/PressF5 this page if you can't click the download/preview link

F5
X
