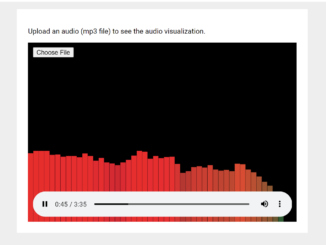

The JS Audio Visualizer is a lightweight JavaScript plugin to create an audio waveform visualizer. It gets the frequency data from the audio source file and draws audio visualization on the canvas element. It displays real-time audio visualization with an HTML5 audio player.

Whether you are working on a custom audio player or want to show an audio visualizer with the browser’s default audio player, you can easily integrate this JS visualizer. You just need to create a canvas element then this code snippet will do everything for you. So, have a look at the following guide to implementing an audio waveform visualizer into your project.

How to Create JavaScript Audio Waveform Visualizer

1. In the first step, create a div element with id “content”, place a canvas element and HTML5 audio element inside it. In order to get the audio file, create an input element with type “file” and define its id “thefile”. Basically, the input for the audio file is optional to test the JS visualizer, you can directly pass the source file in the JavaScript function.

<div id="content">
  <input type="file" id="thefile" accept="audio/*" />
  <canvas id="canvas"></canvas>
  <audio id="audio" controls></audio>
</div>

2. After that, style the visualizer using the following CSS. You can set the custom style according to your needs.

#content{
    position: relative;
    width: 100%;
    height: 380px;
}
#thefile {
  position: absolute;
  top: 10px;
  left: 10px;
  z-index: 100;
}

#canvas {
  position: absolute;
  left: 0;
  top: 0;
  width: 100%;
  height: 100%;
}

audio {
  position: absolute;
  left: 10px;
  bottom: 10px;
  width: calc(100% - 20px);
}

3. Finally, add the following JavaScript for the visualizer into your project.  Assign the audio source to the “file” variable and done.

window.onload = function() {

  var file = document.getElementById("thefile");
  var audio = document.getElementById("audio");

  file.onchange = function() {
    var files = this.files;
    audio.src = URL.createObjectURL(files[0]);
    audio.load();
    audio.play();
    var context = new AudioContext();
    var src = context.createMediaElementSource(audio);
    var analyser = context.createAnalyser();

    var canvas = document.getElementById("canvas");
    canvas.width = window.innerWidth;
    canvas.height = window.innerHeight;
    var ctx = canvas.getContext("2d");

    src.connect(analyser);
    analyser.connect(context.destination);

    analyser.fftSize = 256;

    var bufferLength = analyser.frequencyBinCount;
    console.log(bufferLength);

    var dataArray = new Uint8Array(bufferLength);

    var WIDTH = canvas.width;
    var HEIGHT = canvas.height;

    var barWidth = (WIDTH / bufferLength) * 2.5;
    var barHeight;
    var x = 0;

    function renderFrame() {
      requestAnimationFrame(renderFrame);

      x = 0;

      analyser.getByteFrequencyData(dataArray);

      ctx.fillStyle = "#000";
      ctx.fillRect(0, 0, WIDTH, HEIGHT);

      for (var i = 0; i < bufferLength; i++) {
        barHeight = dataArray[i];

        var r = barHeight + (25 * (i/bufferLength));
        var g = 250 * (i/bufferLength);
        var b = 50;

        ctx.fillStyle = "rgb(" + r + "," + g + "," + b + ")";
        ctx.fillRect(x, HEIGHT - barHeight, barWidth, barHeight);

        x += barWidth + 1;
      }
    }

    audio.play();
    renderFrame();
  };
};

That’s all! hopefully, you have successfully integrated this JS audio visualizer into your project. If you have any questions or facing any issues, feel free to comment below.
